Round stranded cables with overall copper braids - similar to DIN 46440

Construction and Application

These cables are a combination of an inner stranded cable that has an outer tubular braid to provide a higher mechanical stability. The overall tubular braid keeps the cable together against a probable decay caused by serial movements. The overall tubular braid provides also a higher cross-section then the nominal value.

Technical Data

Material

  • 0,05 - 0,07 - 0,10 mm annealed Cu ETP1 wires *uncoated.

Delivery

  • plastic reels, in rings, on spools or wooden drums.

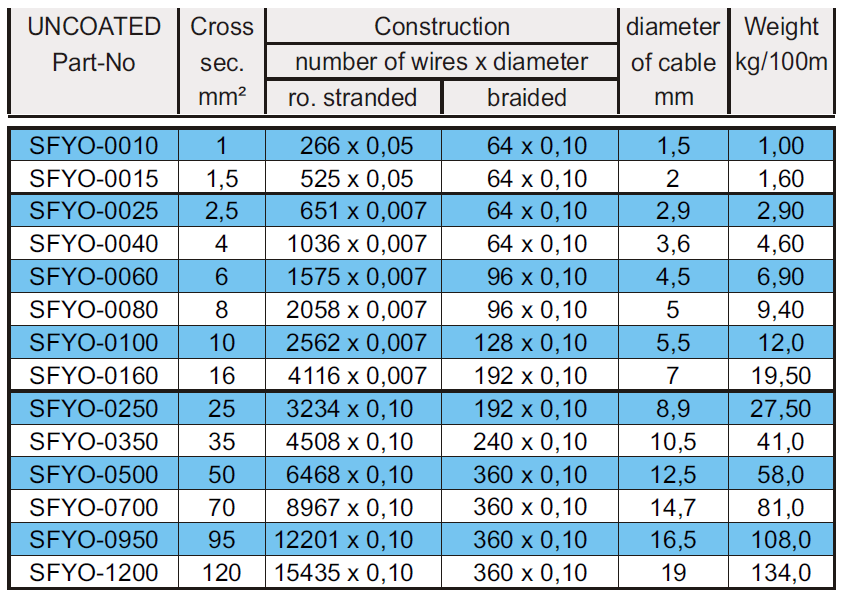

Data Table
